Esko Altiflash LED Warning Beacon

PRODUCT CODE: LBA

High performance LED warning beacon

  • CE
  • E-approved
  • ECE R10
  • ECE R65

Select your options

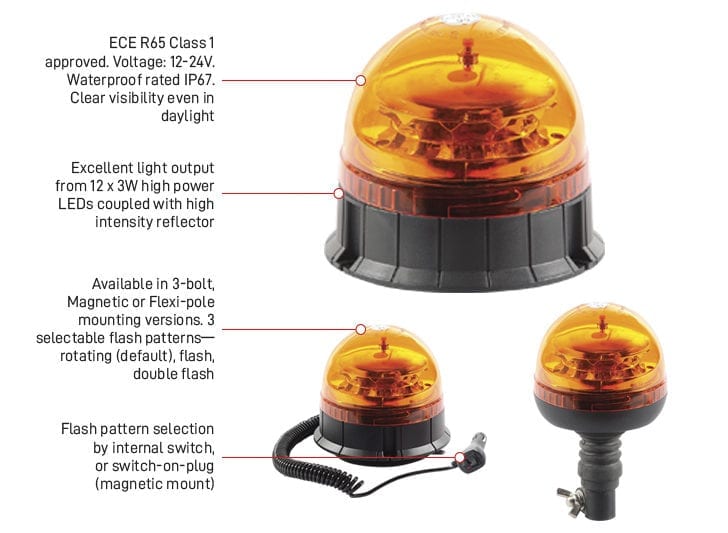

  • High quality European design
  • Excellent light output from 12 x 3W high power LEDs coupled with high intensity reflector
  • Clear visibility even in daylight
  • ECE R65 Class 1 approved
  • Voltage: 12-24V
  • Waterproof rated IP67
  • Shatterproof polycarbonate dome

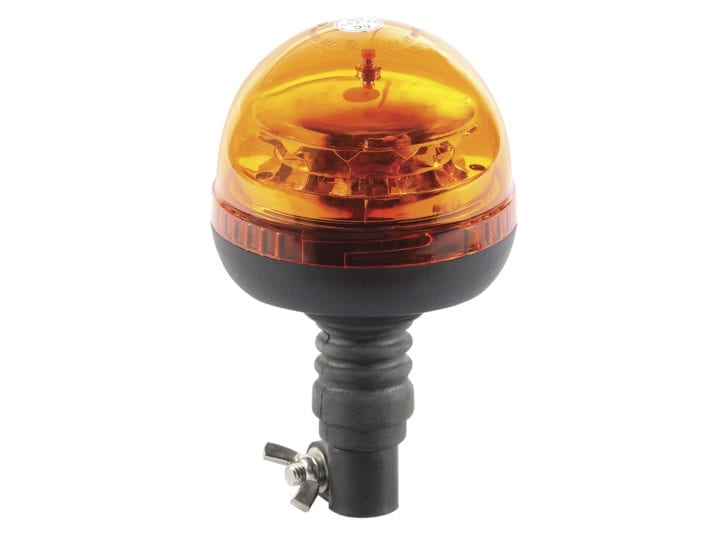

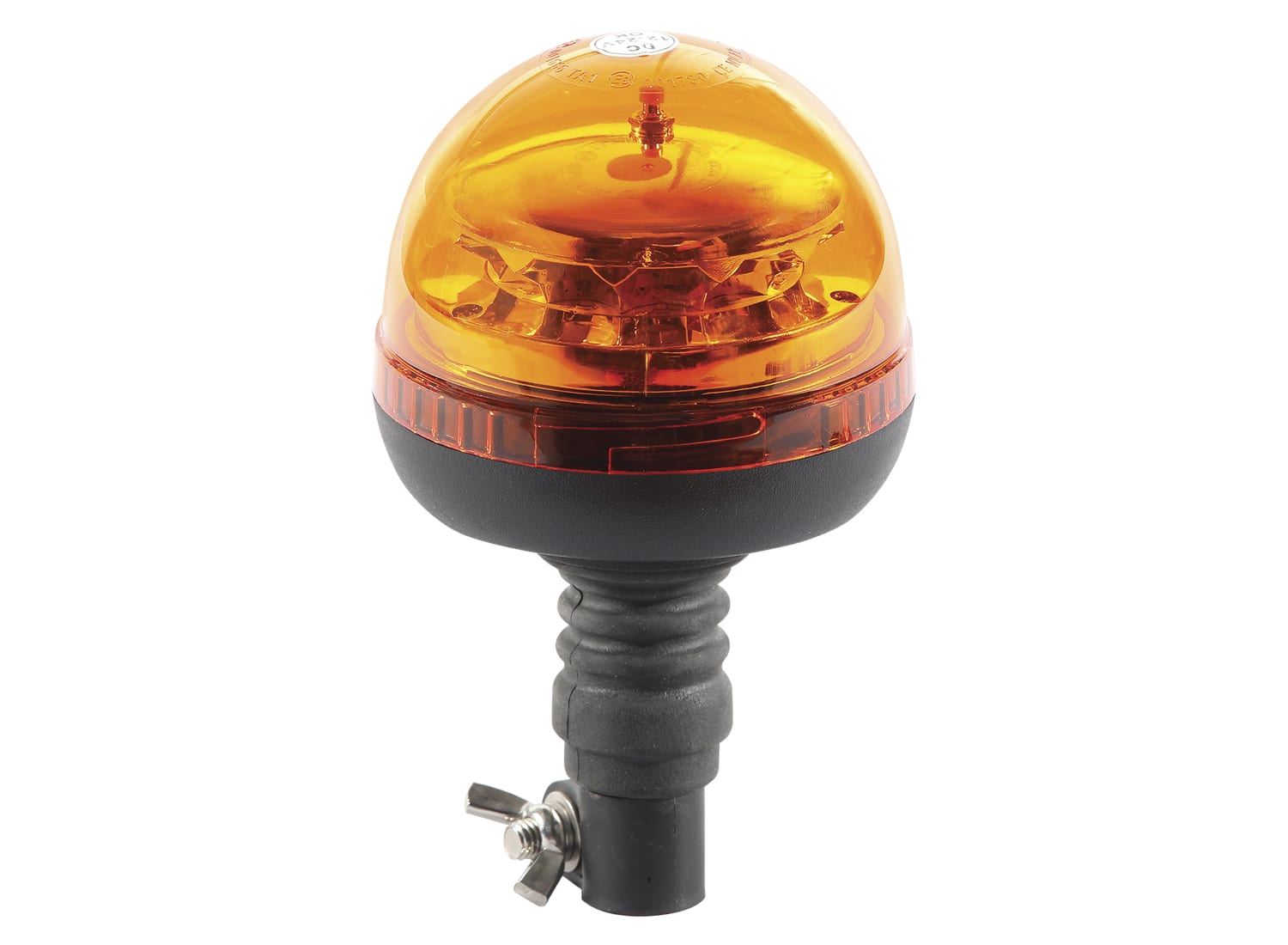

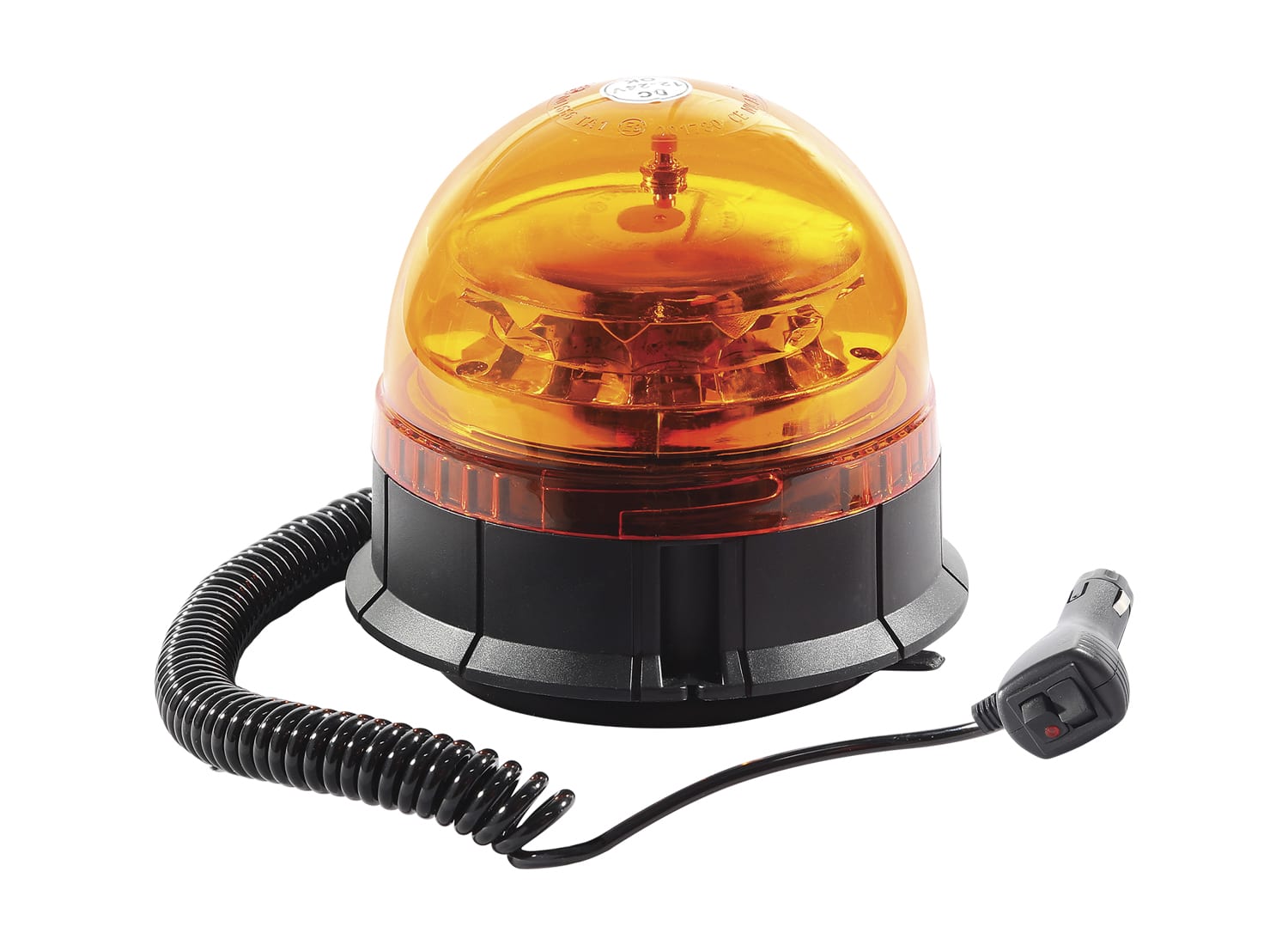

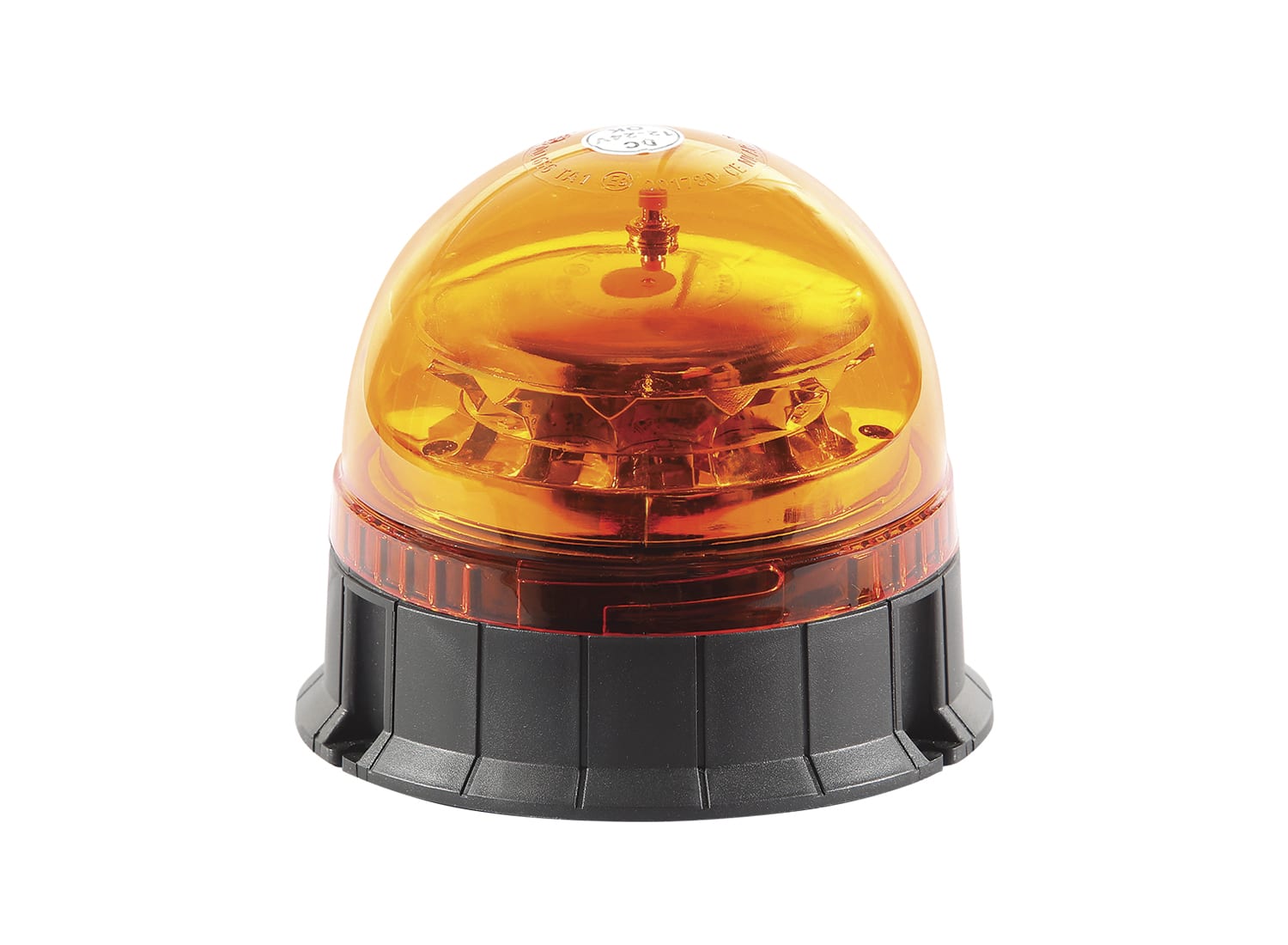

  • Available in 3-bolt, Magnetic or Flexi-pole mounting versions
  • Magnetic mount cable: maximum length of 3 metres
  • 3 selectable flash patterns—rotating (default), flash, double flash
  • Flash pattern selection by internal switch, or switch-on-plug (magnetic mount)
  • Includes mounting gasket and bolts
  • H 132mm, Lens Dia 128mm, Max Dia 144mm
  • 2-year warranty



CE

CE

The CE mark indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area.

E-approved

E-approved

Approval for use as lighting or a light signalling device on public roads in the EU, plus several other countries including Australia and New Zealand. Marking in the lens: circle enclosing the letter E plus a figure indicating the country issuing the type-approval for the light and followed by the number of approval.

ECE R10

ECE R10

ECE R10 is a European standard for automotive electronics that covers a variety of testing including RF immunity and emissions, burst, surge, harmonics, and flicker.

ECE R65

ECE R65

ECE R65 (R65) is a United Nations standard for beacons, light bars and other vehicle warning lamps, designed to ensure that key standards governing light output, light dispersion, flash frequency and colour are met. Cold start, heat resistance and water ingress are also measured under the R65 standard.

  • Agricultural vehicles
  • Refuse collection
  • Road maintenance
  • Mowing and weed spraying
  • Infrastructure maintenance
  • Surveying
  • Airports and transport hubs
  • Logistics
  • Construction
Pack quantity/MOQ: Sold individually
