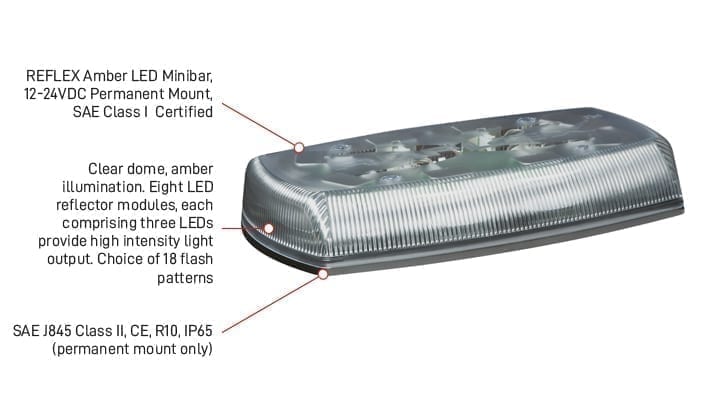

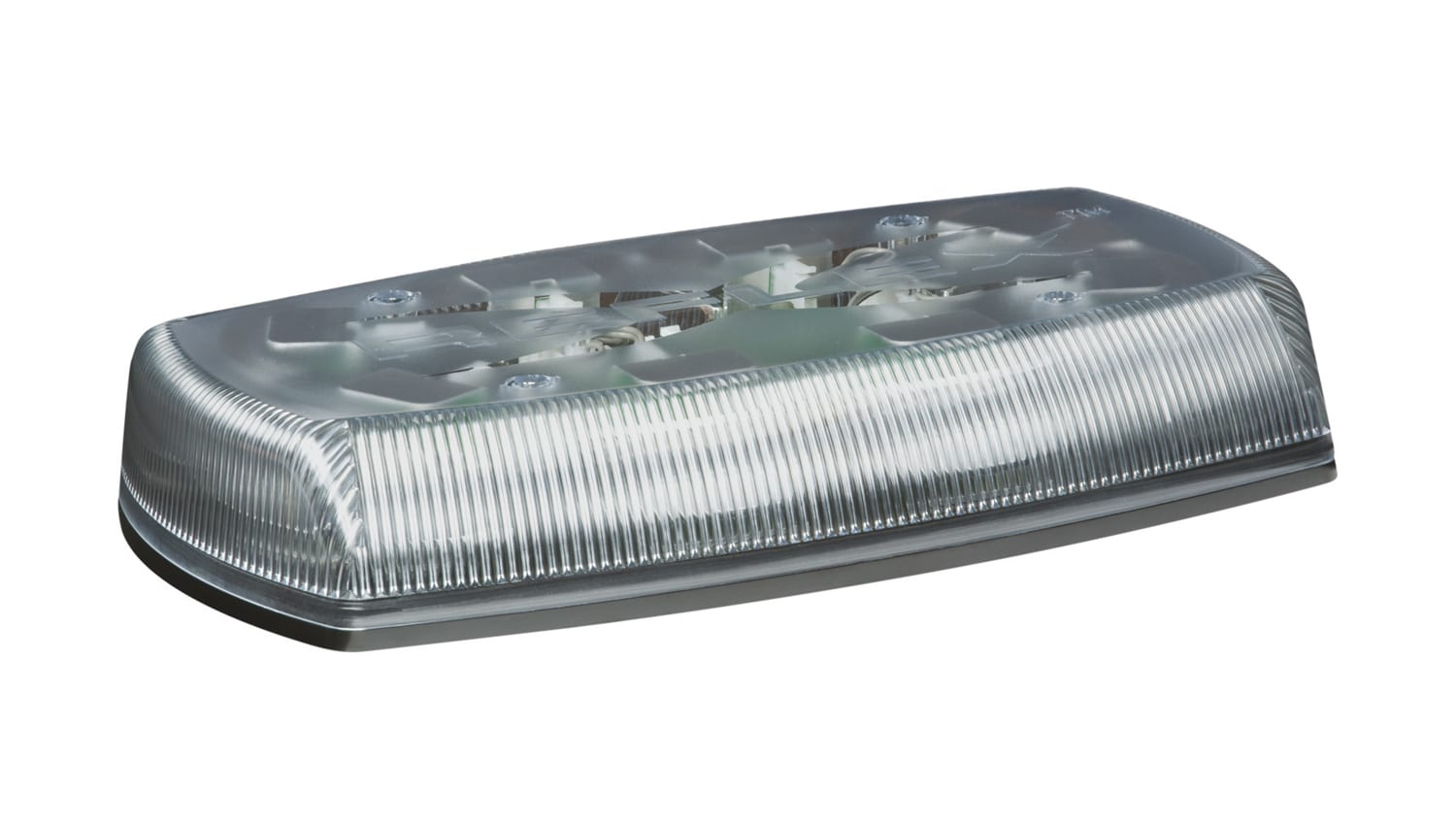

- Reflex Amber LED Minibar, 12–24VDC permanent mount
- SAE Class I and Class II versions available
- Clear dome, amber illumination
- Eight LED reflector modules, each comprising three LEDs provide high intensity light output
- Choice of 18 flash patterns
- Synchronization capable
- Polycarbonate base and low profile shatterproof lens
- Class I and II available, SAE J845, CE, R10, IP65 certified
- Temperature Range: -30°C to +50°C
- Size: 382mm x 230mm x 63mm (L/W/H)
- UNBEATABLE THREE YEAR WARRANTY
Esko Reflex Amber LED Minibar
SAE J845 Class I
US standard that applies to flashing warning beacons. Sets out acceptable colours, brightness, flash patterns, materials and markings. Class I is the highest possible standard, approved for use on emergency vehicles such as police, fire and ambulance.
SAE J845 Class II
US standard that applies to flashing warning beacons. Sets out acceptable colours, brightness, flash patterns, materials and markings. Class II is designed for authorized service and maintenance vehicles to caution people of traffic hazards.
- Refuse collection
- Road maintenance
- Mowing and weed spraying
- Infrastructure maintenance
- Airports and transport hubs
