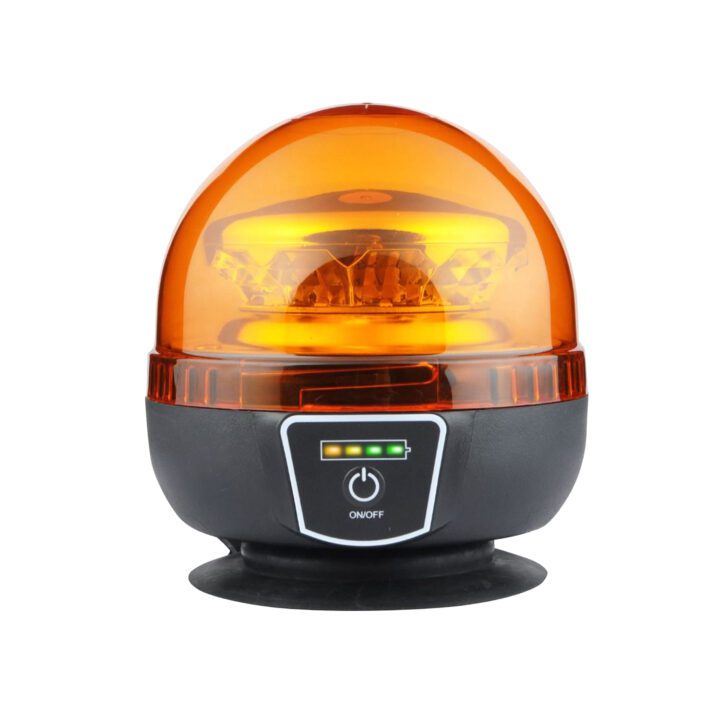

This is new technology--a rechargeable magnetic beacon. Now you can operate a magnetically mounted beacon without having to run a cable out the window. The unit has an integral on/off switch with a smart battery status LED indicator and a combined magnet and suction cup mounting.

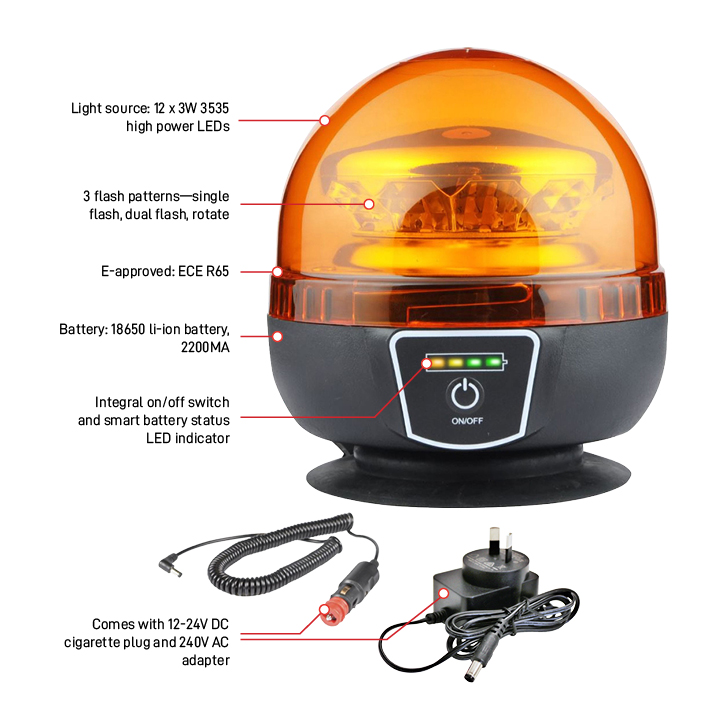

Light source: 12 x 3W 3535 high power LEDs
3 flash patterns—single flash, dual flash, rotate
Integral on/off switch and smart battery status LED indicator
E-approved to ECE R65 when running from external power
Battery: 18650 li-ion battery, 7.4V/2200MA

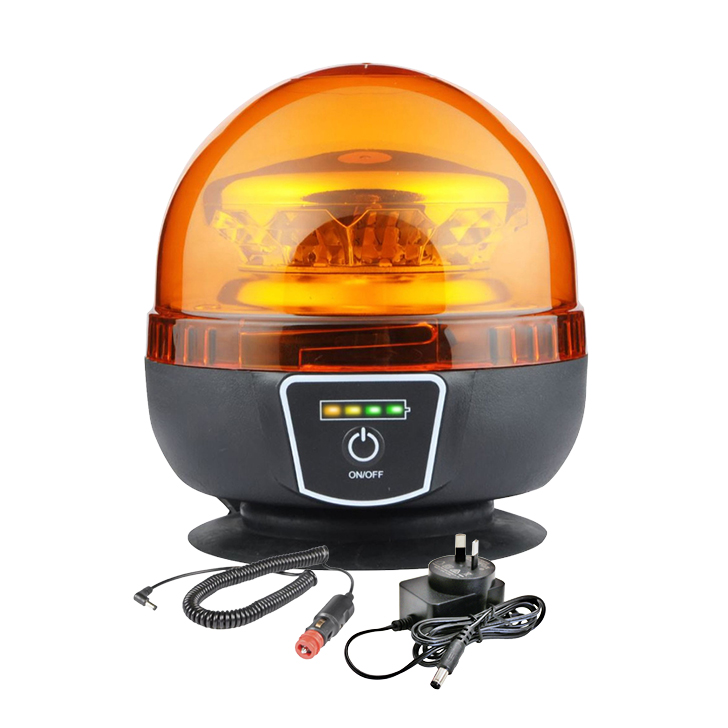

Charging voltage: 12-24V DC or 240V AC
Charging Time: 3 hours
Run time: 3 hours
Waterproof rating: IP65
Mounting: Combined magnet and suction cup

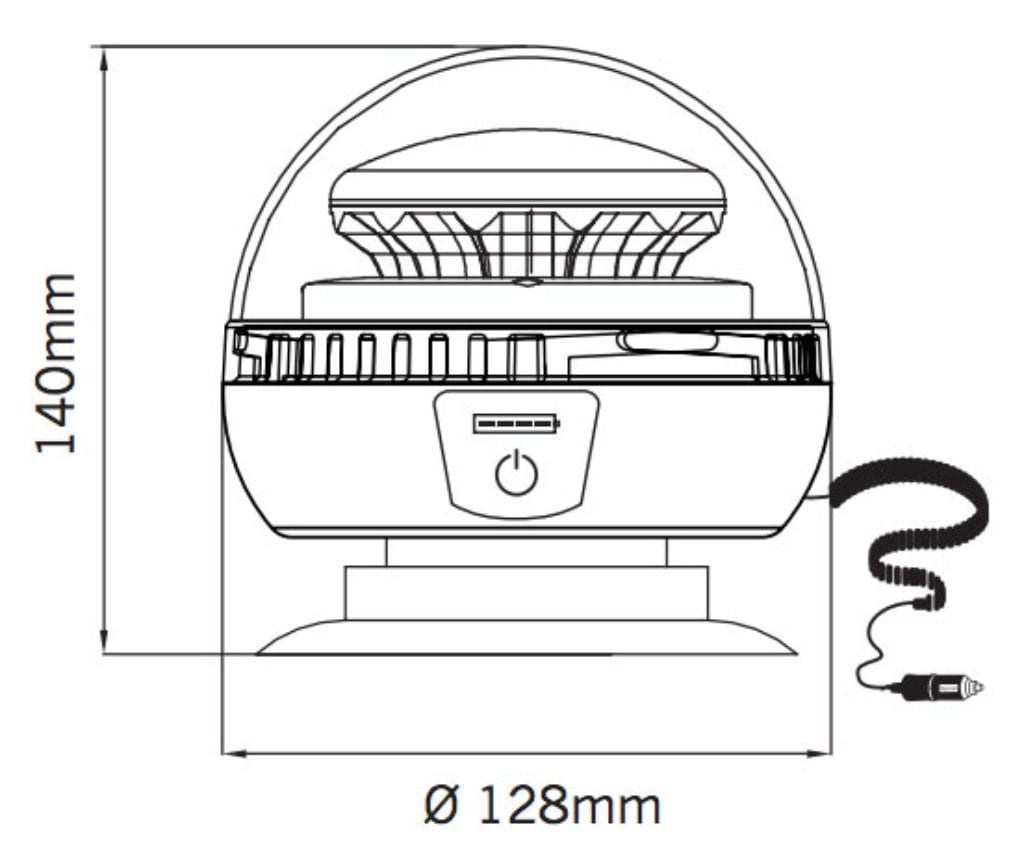

Size: 140mm (h), 128 mm (dia)
Charging cable stretches to maximum length of 3 metres
Not for high speed operation. 100kmh max vehicle speed
The CE mark indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area.
Approval for use as lighting or a light signalling device on public roads in the EU, plus several other countries including Australia and New Zealand. Marking in the lens: circle enclosing the letter E plus a figure indicating the country issuing the type-approval for the light and followed by the number of approval.
ECE R65 (R65) is a United Nations standard for beacons, light bars and other vehicle warning lamps, designed to ensure that key standards governing light output, light dispersion, flash frequency and colour are met. Cold start, heat resistance and water ingress are also measured under the R65 standard.
Anywhere a magnetically mounted beacon might be used but with the feature of highly convenient cordless operation and easy portabilty.
